Hardware specification

ayatec sensoraya module — ayatec sensoraya v1.4 module

The hardware of the unispa modules is based on the adapted ayatec sensoraya control module. It is based on the same underlying PCB, inheriting all of the capabilities, especially the I/O peripherals, Wi-Fi connectivity, and basic System controls.

However, each unispa device is customized to meet the specific needs of each individual module and client, so the final hardware and software configuration may slightly differ, even between modules with the same designation.

Despite having an identical core, individual modules are NOT interchangeable. Each physical device, along with its firmware, is configured for a specific purpose and can be used only for that purpose.

For more details about the ayatec sensoraya control module, visit the dedicated detailed guide.

Below you can find the default connection diagram for each individual module type:

unispa cabin
unispa pool
unispa kneipp

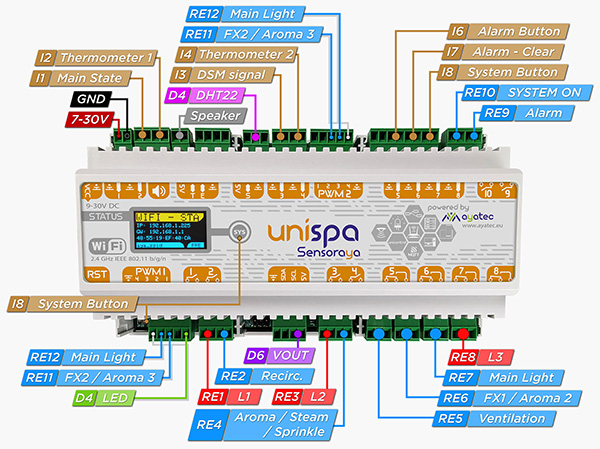

Cabin module

Default connections used for the cabin module:

Learn more about the cabin module processes and the ayatec sensoraya module.

The description above relates to the maximum default configuration. However, each individual module is delivered with its exact schematic, which may slightly differ. Refer to this schematic for the specific module's exact configuration.

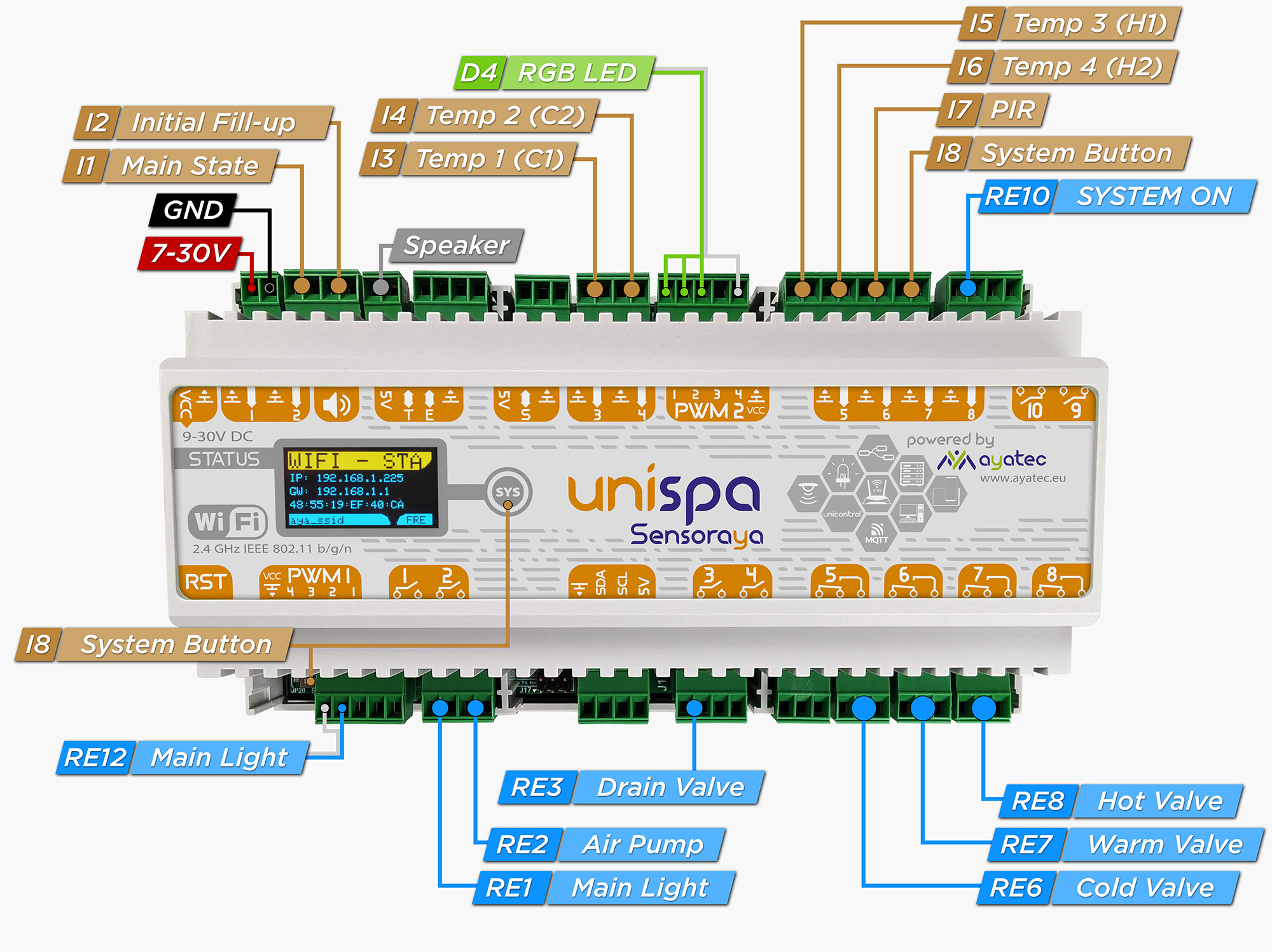

Kneipp module

Default connections used for the kneipp module:

Learn more about the kneipp module processes and the ayatec sensoraya module.
